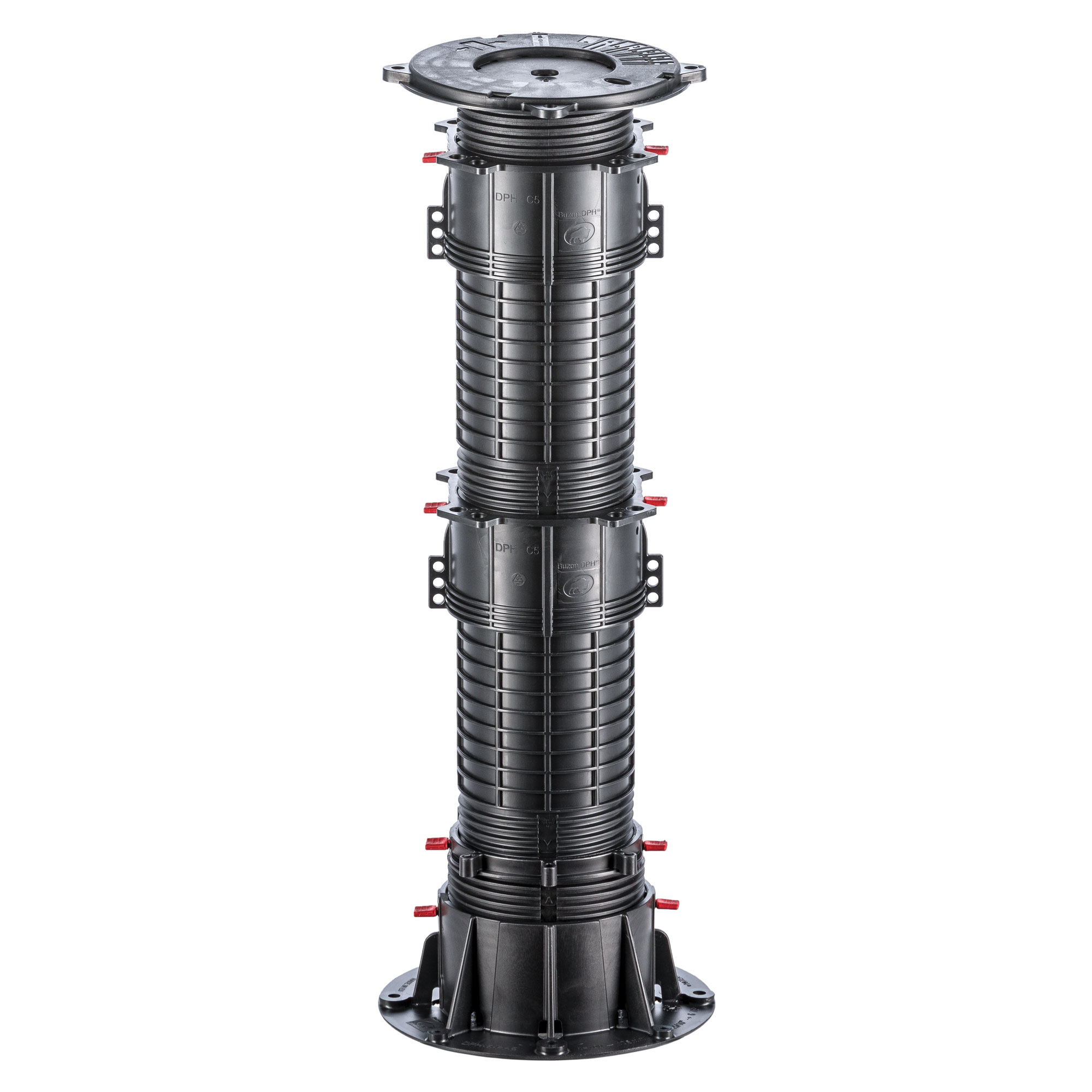

Pedestal BC-10
Adjustable from 562 to 795 mm
This pedestal is composed with:
- 1 BC-5-BASE
- 1 coupler BC-C4
- 3 coupler BC-C3
- 1 BC-5-TOP
- 12 locking keys
Technical information of the BC-10:
Height of the pedestal | 562-795 mm |
Diameter of the top | 145 mm |
Diameter of the base | 200 mm |
Weight | 1,564 kg |
Breaking load (kg) | 1197 kg |
