Adjustable Pedestals from 12 to 955 mm
Adjustable raised floor pedestals for residential terraces.

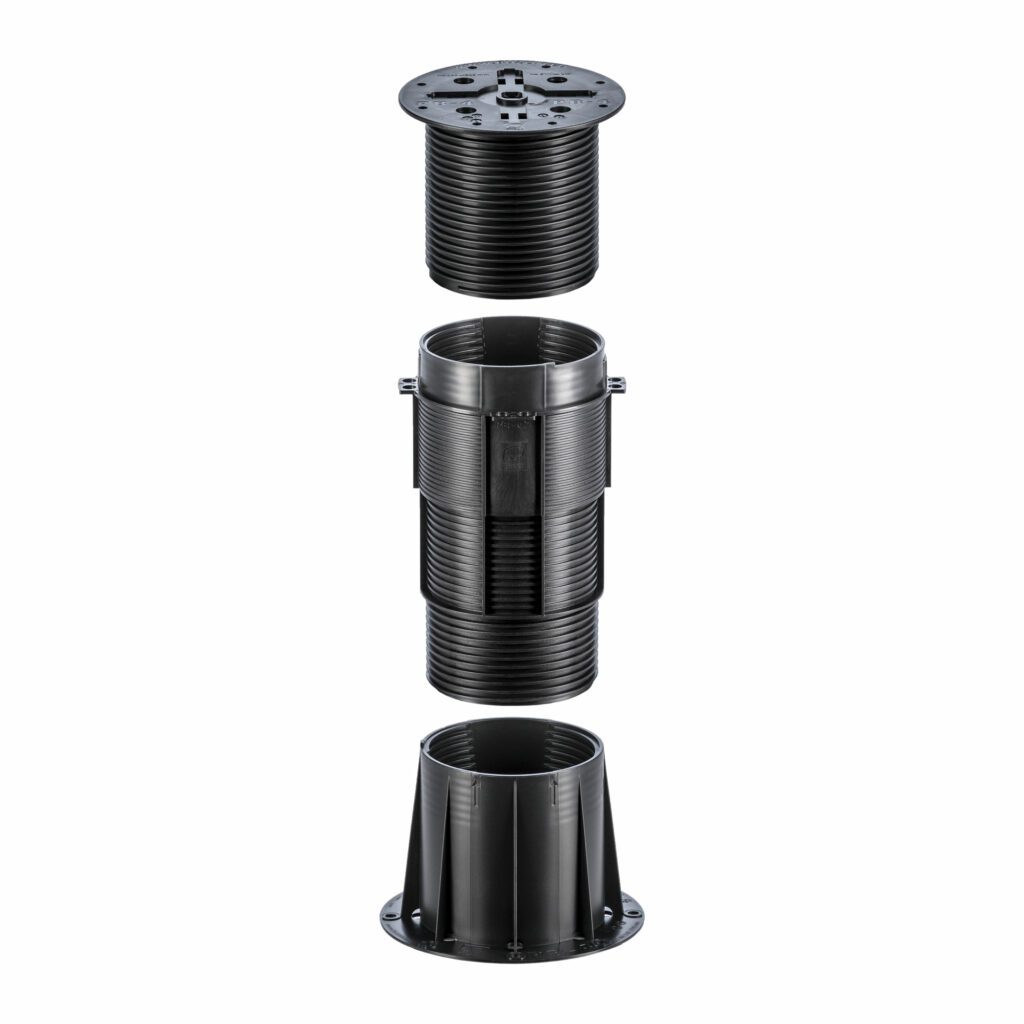

The latest innovation from Buzon®, adjustable raised floor pedestals are perfect for creating residential spaces. Adjustable between 12 and 955 mm, PB adjustable raised floor pedestals are easy and reliable to install and adjust. The enlarged surface area of the PB pedestal top is specially adapted for laying very thick ceramic slabs.
PB Pedestals
THE ADVANTAGES OF PB ADJUSTABLE
RAISED FLOOR PEDESTALS
1/13
2/13
Quick and easy installation
3/13
High stability thanks to a large pedestal top
4/13
A system supporting heavy loads
5/13
Better thermal and acoustic insulation
6/13
Easy and precise slope correction up to 5%
7/13
Easy access to the waterproofing membrane or substructure
8/13
Concealing of technical equipment
9/13
Respect of the waterproofing membrane
10/13
A broad range of accessories for the terrace finish
11/13
Sustainable solution
12/13
100% recyclable
13/13
Presence of open joints avoiding all risks of cracking as compared to closed joints. Easier water evacuation
How Many supports
do you need?
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Pellentesque mauris enim, congue nec ullamcorper sed, eleifend a dui. Phasellus suscipit, turpis nec dignissim iaculis, sapien libero vehicula lorem, quis gravida sapien justo et lorem.
AVERAGE NUMBER OF SUPPORTS REQUIRED PER M2 OF DECKING:*
| Dimension and surface area of the terrace | 20m² | 50m² | 100m² | 1 000m² |
|---|---|---|---|---|
| Length | 5 | 10 | 10 | 50 |
| Width | 4 | 5 | 10 | 20 |
| Paver format | Pedestals/m² | Pedestals/m² | Pedestals/m² | Pedestals/m² |
|---|---|---|---|---|
| 40 x 40 cm | 7.70 | 7.28 | 6.76 | 6.43 |
| 50 x 50 cm | 4.95 | 4.62 | 4.41 | 4.14 |
| 60 x 60 cm | 4.00 | 3.60 | 3.24 | 2.94 |
| 75 x 75 cm | 4.90 | 4.36 | 4.21 | 3.71 |
| 80 x 80 cm | 4.15 | 4.06 | 3.65 | 3.24 |
| 90 x 90 cm | 6.00 | 5.76 | 5.76 | 5.15 |
| 100 x 100 cm | 4.95 | 4.62 | 4.41 | 4.14 |
| 120 x 30 cm | 7.50 | 6.48 | 6.30 | 5.78 |
| 120 x 40 cm | 5.50 | 5.04 | 4.68 | 4.34 |
| 120 x 60 cm | 4.00 | 3.60 | 3.24 | 2.98 |
| 90 x 45 cm | 6.00 | 5.76 | 5.76 | 5.15 |
*Information is provided as a guideline only. The number of pedestals used varies based on the
specifics of each project. Buzon® cannot be held responsible for variations in quantity.
