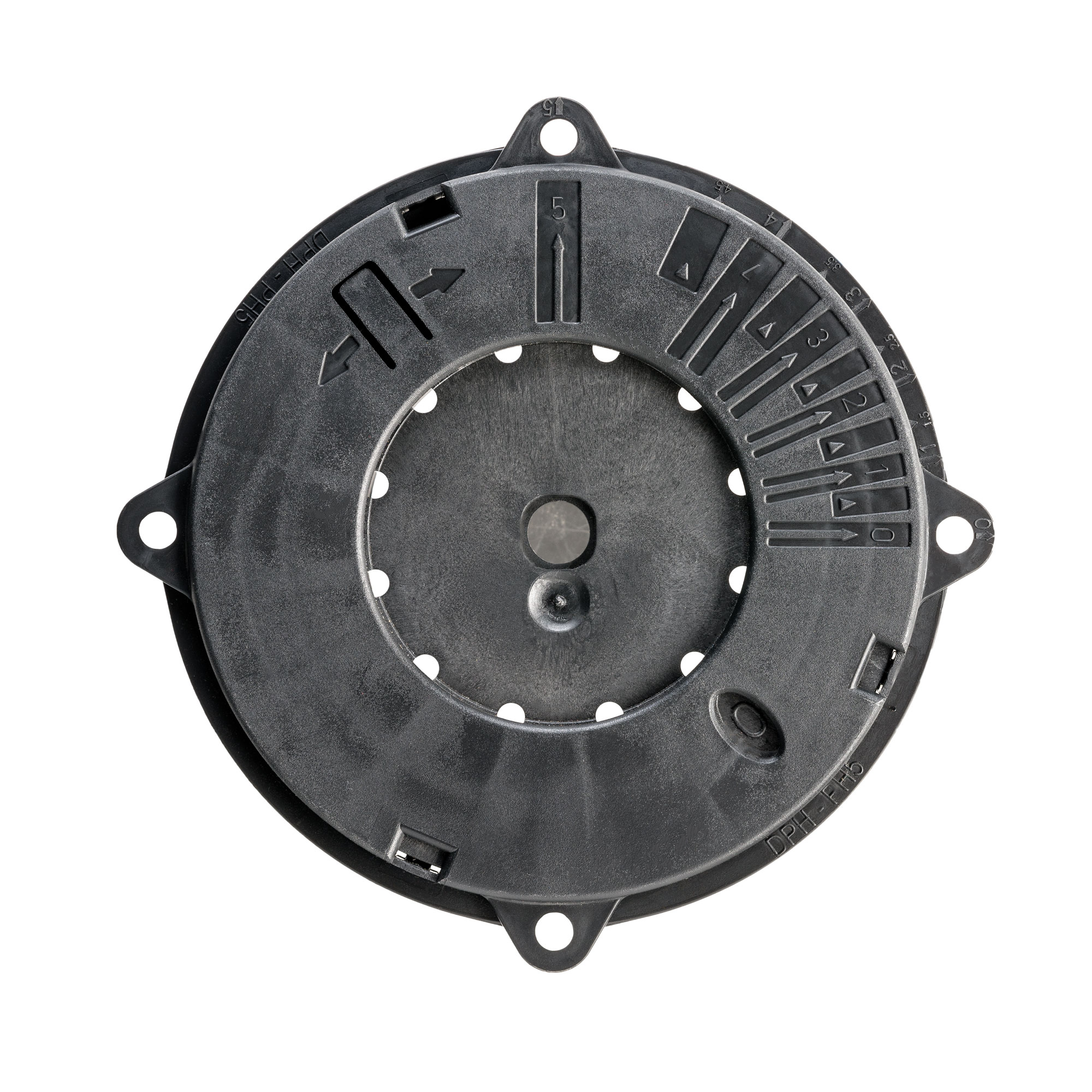

Pedestal DPH-1

Adjustable pedestal

from 18 to 28 mm

DPH-1

Adjustable from 18 to 28 mm

Latest pedestal from our DPH Range, the DPH-1 is adjustable from 18 to 28 mm. Thanks to its lugs, it easily adjusts in height which allows a quick and reliable implementation. The DPH-1 pedestal will create a perfect levelled terrace when the height reserve is not large.

Technical information of the DPH-1

Height of the pedestal  18 – 28 mm
Diameter of the top 170 mm
Diameter of the base 197 mm
Weight 195 gr
Breaking load (kg) 2143 kg
