Pedestal DPH-10-PH5

Pedestal from
545 to 740 mm

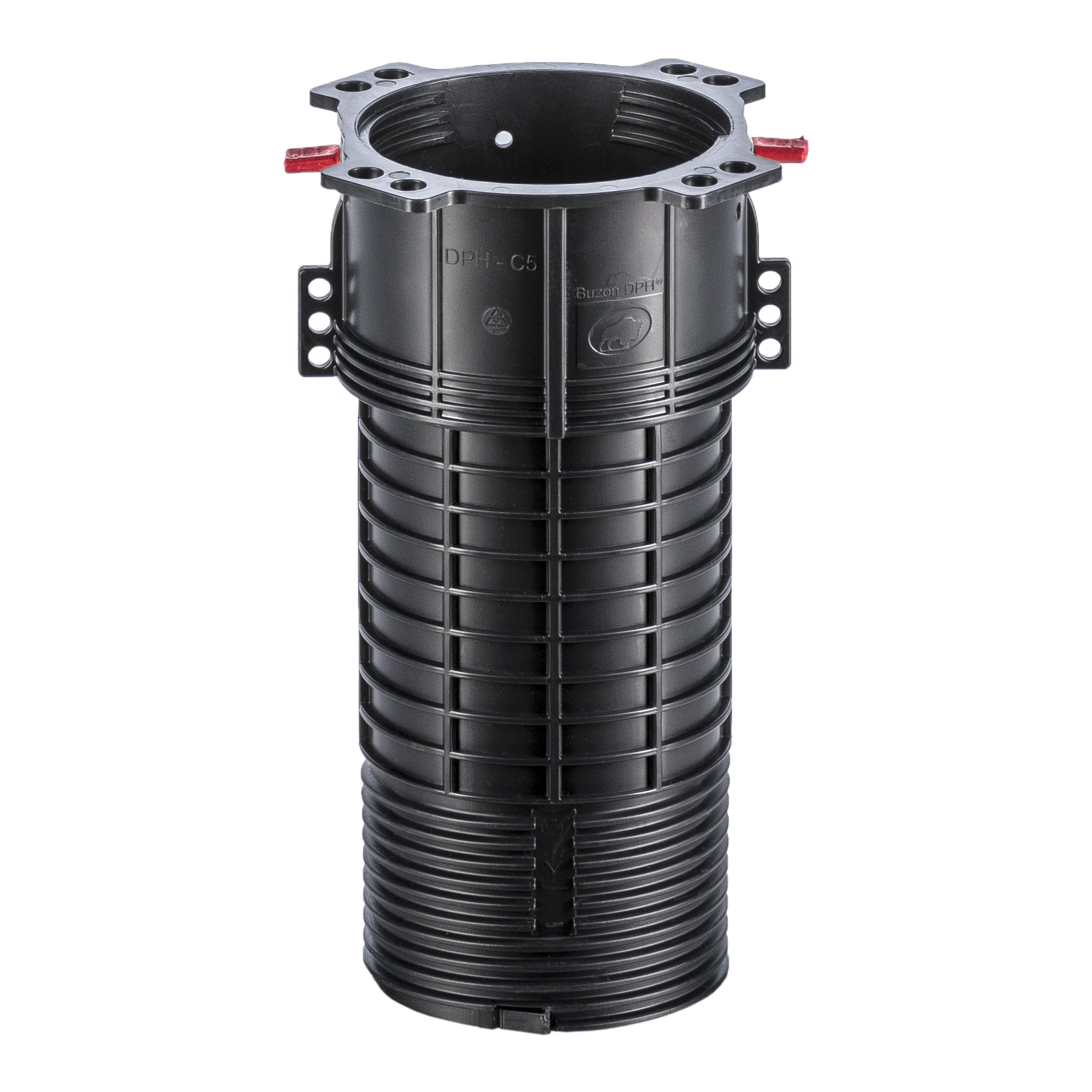

Pedestal DPH-10-PH5

Pedestal from 545 to 740 mm with Slope corrector integrated

This pedestal is composed with:

  • 1 slope corrector
  • 1 DPH-5 top
  • 1 coupler DPH-C2
  • 2 couplers DPH-C5
  • 1 DPH-5 base
  • 10 locking keys

Technical information of the DPH-10-PH5:

Height of the pedestal 545 – 740 mm
Diameter of the top 155 mm
Diameter of the base 200 mm
Weight 1,888 kg
Breaking load (kg) 1240 kg
