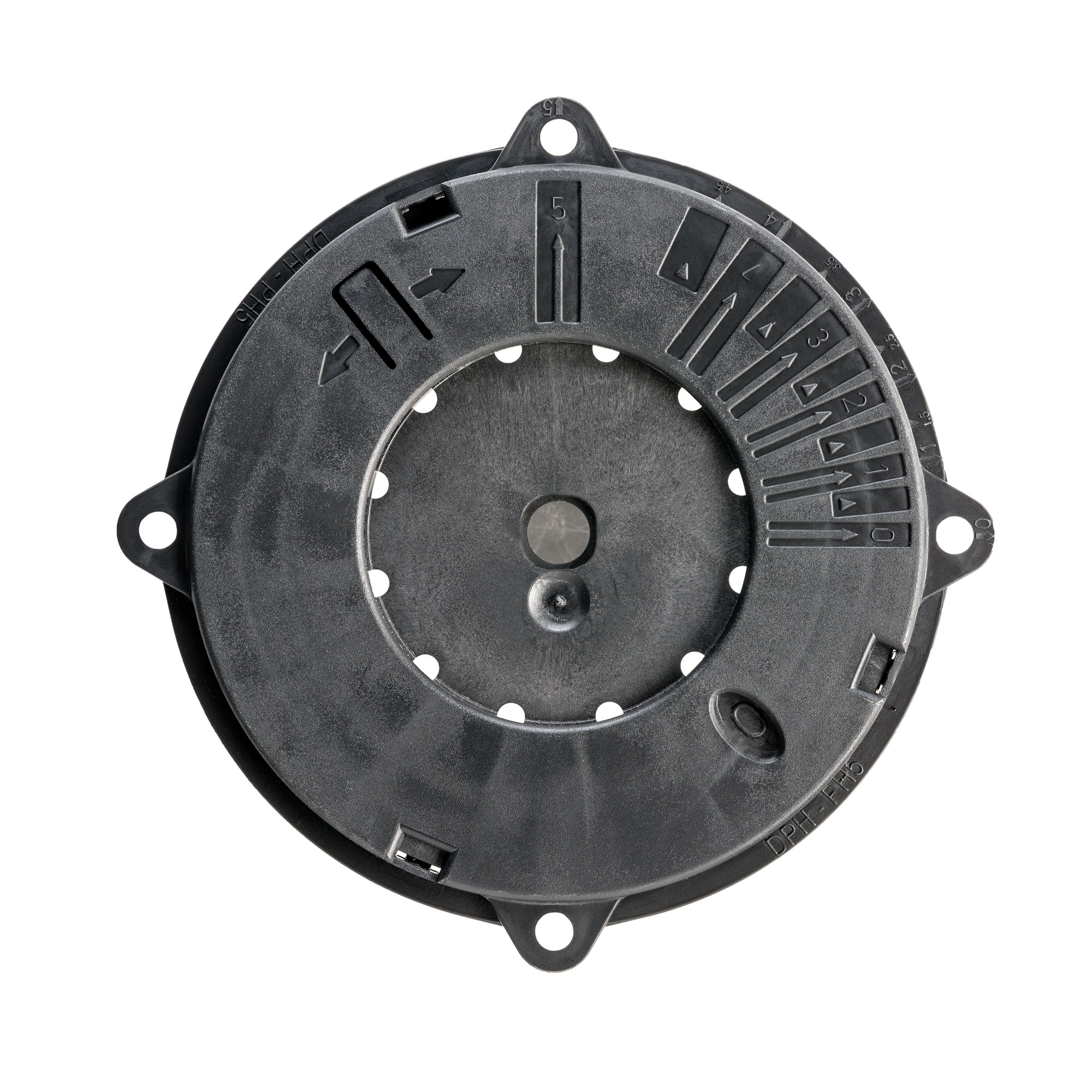

Pedestal DPH-12-PH5
Adjustable from 720 mm to 960 mm with slope corrector integrated
This pedestal is composed with:
- 1 slope corrector
- 1 DPH-5 top
- 1 coupler DPH-C2
- 3 couplers DPH-C5
- 1 DPH-5 base
- 12 locking keys
Technical information of the DPH-12-PH5:
Height of the pedestal | 720 – 960 mm |
Diameter of the top | 155 mm |
Diameter of the base | 200 mm |
Weight | 2,363 kg |
Breaking load (kg) | 1154 kg |
