Pedestal DPH-6-PH5

Adjustable from

175 to 285 mm

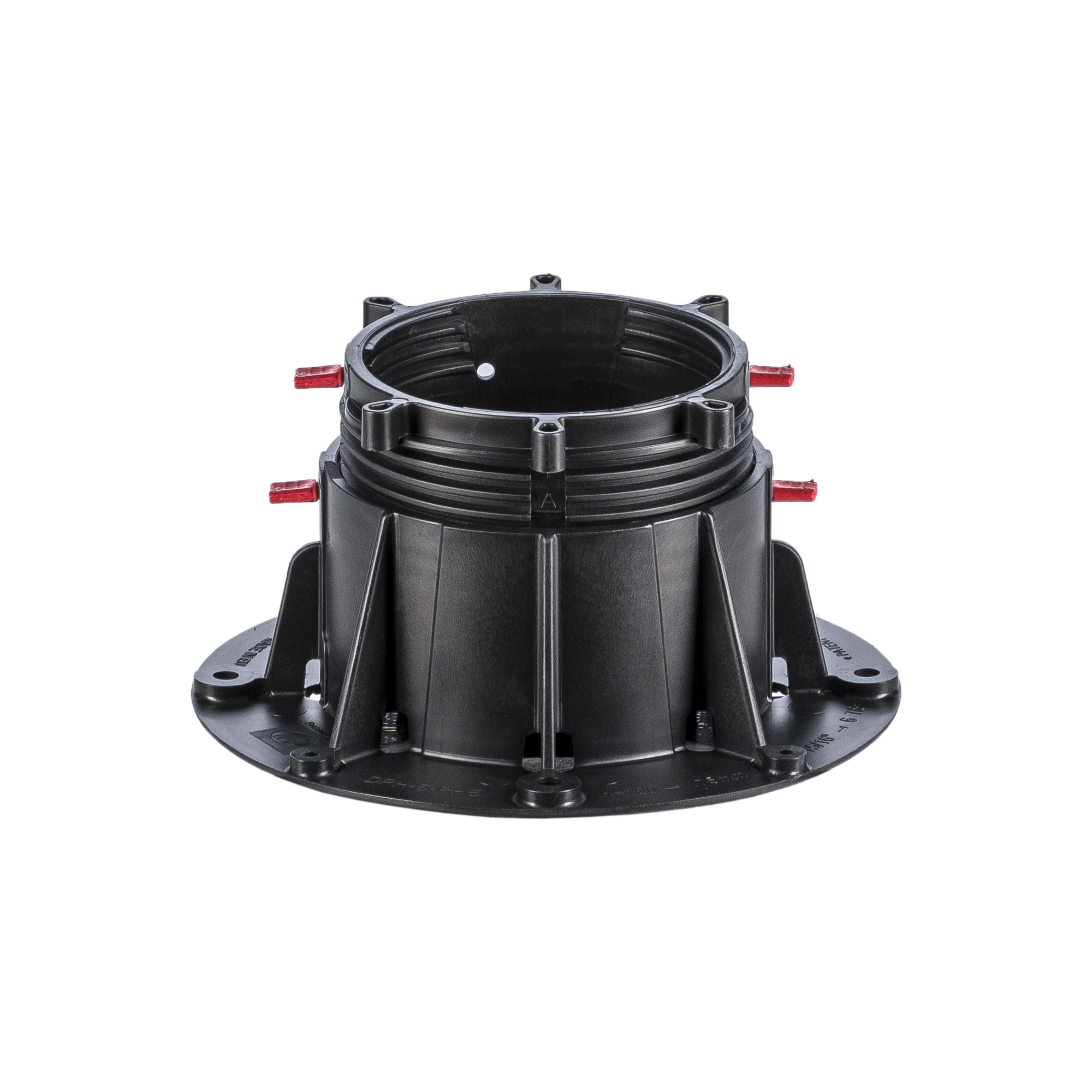

Pedestal DPH-6-PH5

Adjustable from 175 to 285 mm with slope corrector integrated

This pedestal is composed with:

  • 1 slope corrector
  • 1 DPH-5 top
  • 1 coupler DPH-C2
  • 1 DPH-5 base
  • 6 locking keys

Technical information of the DPH-6-PH5:

Height of the pedestal 175 – 285 mm
Diameter of the top 155 mm
Diameter of the base 200 mm
Weight 938 g
Breaking load (kg) 1542 kg
