    Pedestal DPH-9-PH5

    Adjustable from
    465 mm to 625 mm

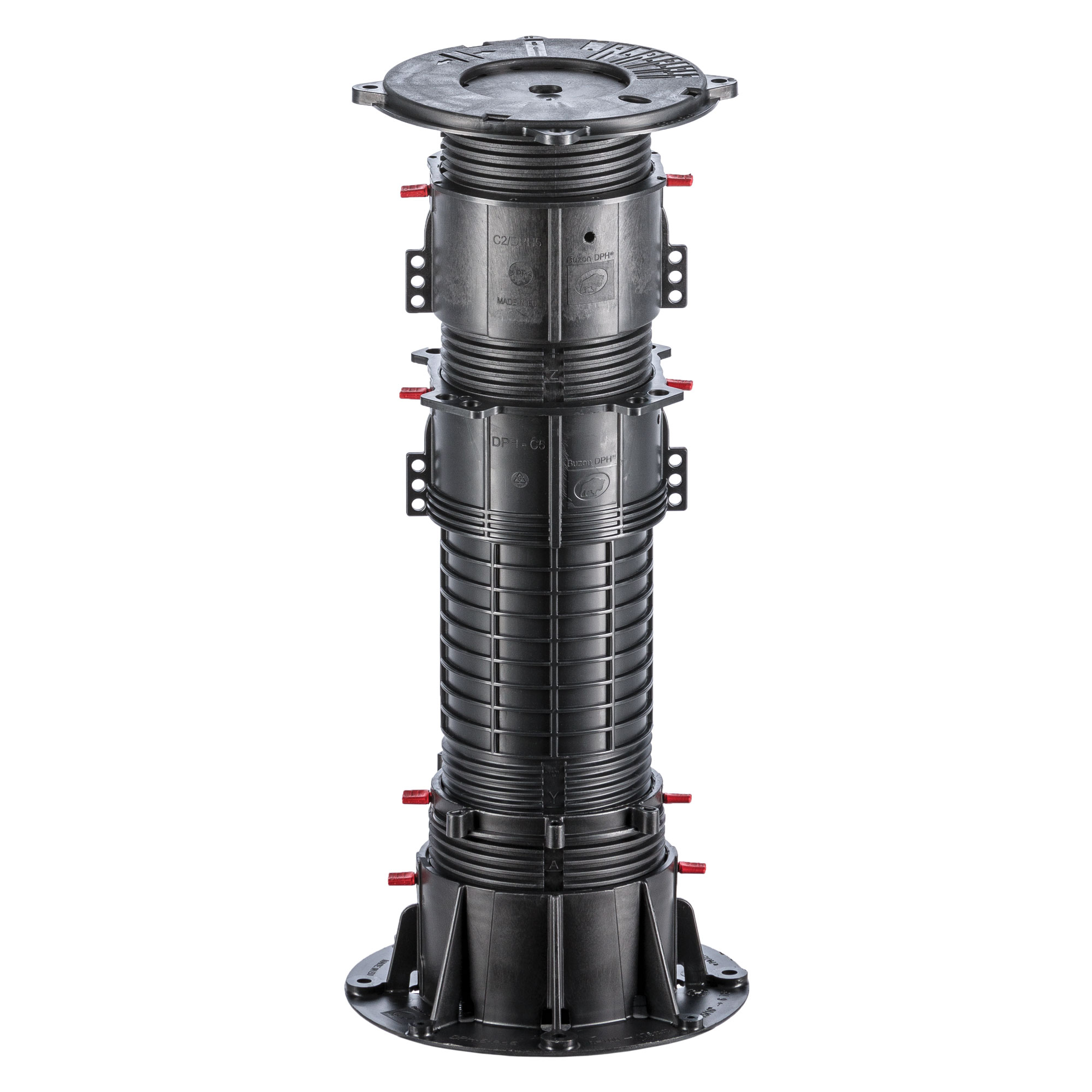

    Pedestal DPH-9-PH5

    Adjustable from 465 mm to 625 mm with slope corrector integrated

    This pedestal is composed with:

    • 1 slope corrector
    • 1 DPH-5 top
    • 2 couplers DPH-C5
    • 1 DPH-5 base
    • 8 locking keys

    Technical information of the DPH-9-PH5

    Height of the pedestal 465 – 625 mm
    Diameter of the top 155 mm
    Diameter of the base 200 mm
    Weight 1,617 kg
    Breaking load (kg) 1307 kg
